OWS Database Documentation

Table of Contents

• OWS Database Documentation

  • System Architecture Diagram

  • Open Data Cube Native Entities

  • Materialised Views over ODC Indexes (Postgres driver only)

  • Ranges Table (Layer Extent Cache)

  • Creating/Maintaining the OWS Schema

    • Creating or Updating the OWS Schema

    • Cleaning up an old datacube-ows 1.8 schema

    • Granting permissions to database roles

  • Updating/Maintaining OWS data

    • Refreshing Materialised Views

    • Updating range tables

    • Updating range tables for individual layers

Datacube OWS uses three groups of database entities:

1. ODC native entities

2. OWS materialised views over ODC indexes

3. OWS range tables.

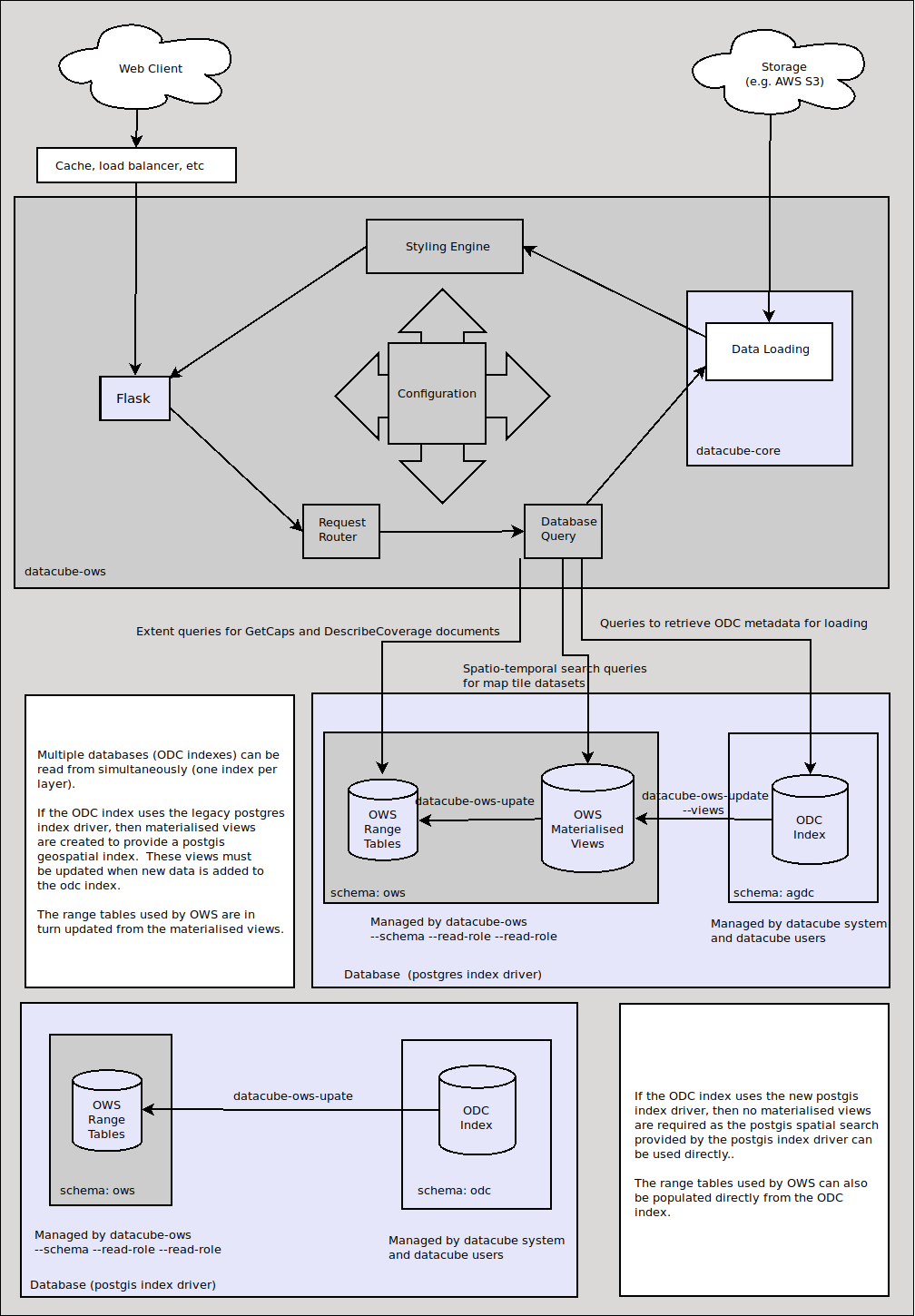

System Architecture Diagram

OWS Architecture Diagram, including Database structure.

Open Data Cube Native Entities

The core of the Datacube-OWS application database is found in either the agdc schema (for the legacy postgres index driver), or the odc schema (for the new postgis index driver). See Open Data Cube.

This schema is created and maintained with the datacube command. OWS only needs read access to this schema.

Materialised Views over ODC Indexes (Postgres driver only)

The materialised views provide a dataset level extent index using PostGIS datatypes.

These views are used only as an intermediate calculation step to populate the Layer Extent Cache, as described below, and for doing dataset queries for GetMap, GetFeatureInfo and GetCoverage requests.

The materialised views must be manually updated whenever new data is added to the underlying ODC index, as described below.

With the new postgis index driver, the functionality provided by the materialised views is available directly from the ODC index, and so no materialised views are required.

Ranges Table (Layer Extent Cache)

Range tables serve as a cache of full-layer spatio-temporal extents for generating GetCapabilities documents efficiently.

Creating/Maintaining the OWS Schema

Creating or updating an OWS schema is performed with following options to datacube-ows-update.

Note that the options in this section requires database superuser/admin privileges.

Creating or Updating the OWS Schema

The --schema option to datacube-ows-update creates a new OWS schema if it does not exist, or updates to the form required by the installed version of datacube-ows:

datacube-ows-update --schema

The --schema option creates/updates the OWS schema in the database defined by the default ODC environment only. If you are using multiple ODC environments, or are simply not using the default environment, you will need to pass the target environment name with the -E option. E.g. to create an OWS schema in the myenv ODC environment:

datacube-ows-update -E myenv --schema

Cleaning up an old datacube-ows 1.8 schema

In the 1.8.x series of datacube-ows releases, the OWS specific views and tables were stored somewhat haphazardly in the misleadingly named wms schema with some entities in the public schema.

After upgrading OWS to a 1.9.x series release, these older database entities can be dropped from the database with the --cleanup option:

datacube-ows-update --cleanup

You can combine the --schema and --cleanup options in the one invocation:

datacube-ows-update --schema --cleanup

The new schema is always created before dropping the old one, regardless of the order you specify the options.

The --cleanup option targets the default ODC environment database unless a target environment is supplied with the -E option.

Granting permissions to database roles

The datacube-ows web application requires permissions to read from the various tables and views in the ows schema. These can permissions (including read-access to the ODC tables can be granted to a database role with the --read-role <role_name> argument:

datacube-ows-update --read-role role1

You do not need to use –read-role and –write-role on the same user - granting write permissions automatically grants read permissions as well.

The datacube-ows-update options that update the data in the OWS schema (described below) require read/write permissions that can be granted with the --write-role <role_name> option:

datacube-ows-update --write-role role2

The --read-role and write-role options can be used separately, together, and/or with the --schema and --cleanup options. They can also be used multiple times in the one invocation to grant permissions to multiple roles:

datacube-ows-update --schema --cleanup --read-role role1 --read-role role2 --read-role role3 --write-role admin

The --read-role and --write-role options are executed against the ODC environment database identified by the -E option (Default is default):

datacube-ows-update -E myenv --read-role role1 --read-role role2 --read-role role3 --write-role admin

Updating/Maintaining OWS data

Updating/maintaining data in the OWS schema requires the permissions granted with --write-role, as described above. It is performed with the following datacube-ows-update options:

Refreshing Materialised Views

As datasets are added into or archived out of the ODC database, the materialised views become stale, and need to be periodically manually refreshed, with the --views flag.

datacube-ows-update --views

A lot of the speed of OWS with the postgres index driver comes from pushing expensive database calculations down into these materialised views, and refreshing them is slow and computationally expensive. Large, constantly updating databases will unavoidably have some delay in the availability of the latest data.

Note that the last step of the view refresh (joining the time and space views into a single space-time view) is done CONCURRENTLY. This means that it may not take effect until some minutes after datacube-ows-update exits.

DO NOT ATTEMPT TO REFRESH VIEWS NON-CONCURRENTLY IN A PRODUCTION ENVIRONMENT. This will leave OWS broken and unable to respond to requests until the refresh is complete.

In a production environment you should not be refreshing views much more than 2 or 3 times a day unless your database is small (e.g. less than a few thousand datasets).

If working with multiple ODC environments/databases, you can specify which environment to refresh the materialised views in with the -E option. (The default is to use the default environment.)

Materialised views are required for postgres index driver environments only. In environments using the postgis index driver, the –views option does nothing and may be skipped.

Updating range tables

The range tables are updated from the materialised views by simply calling:

datacube-ows-update

Note that this operation is very fast and computationally light compared to refreshing the materialised views.

Range tables are updated in all ODC environments referenced by the active ODC configuration file. The -E flag is therefore not valid for use with this calling mode.

In a postgres driver production environment, this should be run after refreshing the materialised views, as described above (after waiting a couple of minutes for the final refresh to complete).

In a postgis driver production environment, this is the only required regular maintenance task.

Updating range tables for individual layers

Specific layers can be updated using:

datacube-ows-update layer1 layer2 layer3

(In datacube-ows 1.8.x you could also use ODC product names, but this is no longer supported)

This will need to be done after adding a new layer to the OWS configuration, or after changing the time resolution or the ODC product(s) of an existing layer.

The target OWS database for each layer is determined from OWS configuration, so the -E flag is invalid with this calling mode.
